Ermitteln Sie eine Gleichung der Ebene \(F\), in der das Dreieck \(DAS\) liegt, in Normalenform.

(mögliches Ergebnis: \(F \colon 12x_{1} - 5x_{3} = 0\))

(3 BE)

Lösung zu Teilaufgabe b



Ebenengleichung in Normalenform



Das Dreieck DAS repräsentiert die Ebene F.

Das Vektorprodukt (Kreuzprodukt) zweier linear unabhängiger Vektoren, beispielsweise der Ortsvektoren \(\overrightarrow{D}\) und \(\overrightarrow{S}\), liefert einen Normalenvektor \(\overrightarrow{n}_{F}\) der Ebene \(F\), in der das Dreieck \(DAS\) liegt. Als Aufpunkt wählt man einen der gegebenen Punkte \(A\), \(D\) oder \(S\). Damit lässt sich eine Gleichung der Ebene in Normalenform angeben.

Der Ansatz kann mithilfe der Normalenform in Vektordarstellung oder in Koordinatendarstellung erfolgen. Die Aufgabenstellung nennt als mögliches Ergebnis eine Gleichung der Ebene \(F\) in Normalenform in Koordinatendarstellung.

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

Linear unabhängige Ortsvektoren \(\overrightarrow{D}\) und \(\overrightarrow{S}\):

Lineare (Un-)Abhängigkeit von Vektoren

Lineare (Un-)Abhängigkeit von zwei Vektoren

Zwei Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) sind

linear abhängig, wenn

\(\overrightarrow{a} \parallel \overrightarrow{b}\quad\) bzw. \(\quad\overrightarrow{a} = k \cdot \overrightarrow{b}\,; \enspace k \in \mathbb R \quad\) gilt.

linear unabhängig, wenn

\(\overrightarrow{a} \nparallel \overrightarrow{b}\quad\) bzw. \(\quad\overrightarrow{a} \neq k \cdot \overrightarrow{b}\,; \enspace k \in \mathbb R \quad\) gilt.



Lineare (Un-)Abhängigkeit von drei Vektoren

Drei Vektoren \(\overrightarrow{a}\), \(\overrightarrow{b}\) und \(\overrightarrow{c}\) sind

linear abhängig, wenn

sie in einer Ebene liegen bzw. wenn

die lineare Vektorgleichung \(\overrightarrow{c} = r \cdot \overrightarrow{a} + s \cdot \overrightarrow{b}\) eine eindeutige Lösung hat.

linear unabhängig, wenn

sie den Raum \(\mathbb R^{3}\) aufspannen bzw. wenn

die lineare Vektorgleichung \(\overrightarrow{c} = r \cdot \overrightarrow{a} + s \cdot \overrightarrow{b}\) keine Lösung hat.

Bei der Untersuchung der linearen (Un)Abhängigkeit dreier Vektoren spielt es keine Rolle, welche der drei Vektoren \(\overrightarrow{a}\), \(\overrightarrow{b}\) oder \(\overrightarrow{c}\) man als Linearkombination der beiden anderen Vektoren darzustellen versucht.

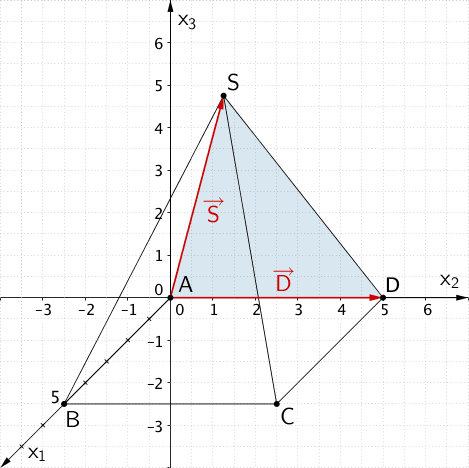

\(D(0|5|0)\), \(S(2{,}5|2{,}5|6)\)



\(\overrightarrow{D} = \begin{pmatrix} 0 \\ 5 \\ 0 \end{pmatrix}\), \(\overrightarrow{S} = \begin{pmatrix} 2{,}5 \\ 2{,}5 \\ 6 \end{pmatrix}\)



Normalenvektor \(\overrightarrow{n}_{F}\) der Ebene \(F\) ermitteln:

Vektorprodukt

Vektorprodukt (Kreuzprodukt)

Das Vektorprodukt \(\overrightarrow{a} \times \overrightarrow{b}\) zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) erzeugt einen neuen Vektor \(\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b}\) mit den Eigenschaften:

\(\overrightarrow{c}\) ist sowohl zu \(\overrightarrow{a}\) als auch zu \(\overrightarrow{b}\) senkrecht.

\[\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b} \quad \Longrightarrow \quad \overrightarrow{c} \perp \overrightarrow{a}, \enspace \overrightarrow{c} \perp \overrightarrow{b}\]

Der Betrag des Vektorprodukts zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) ist gleich dem Produkt aus den Beträgen der Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) und dem Sinus des von ihnen eingeschlossenen Winkels \(\varphi\).

\[\vert \overrightarrow{a} \times \overrightarrow{b} \vert = \vert \overrightarrow{a} \vert \cdot \vert \overrightarrow{b} \vert \cdot \sin{\varphi} \quad (0^{\circ} \leq \varphi \leq 180^{\circ})\]

Die Vektoren \(\overrightarrow{a}\), \(\overrightarrow{b}\) und \(\overrightarrow{c}\) bilden in dieser Reihenfolge ein Rechtssystem. Rechtehandregel: Weist \(\overrightarrow{a}\) in Richtung des Daumens und \(\overrightarrow{b}\) in Richtung des Zeigefingers, dann weist \(\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b}\) in Richtung des Mittelfingers.

Berechnung eines Vektorprodukts im \(\boldsymbol{\mathbb R^{3}}\) (vgl. Merkhilfe)

\[\overrightarrow{a} \times \overrightarrow{b} = \begin {pmatrix} a_1 \\ a_2 \\ a_3 \end {pmatrix} \times \begin {pmatrix} b_1 \\ b_2 \\ b_3 \end {pmatrix} = \begin {pmatrix} a_2 \cdot b_3 - a_3 \cdot b_2 \\ a_3 \cdot b_1 - a_1 \cdot b_3 \\ a_1 \cdot b_2 - a_2 \cdot b_1 \end {pmatrix}\]

\[\begin{align*} \overrightarrow{D} \times \overrightarrow{S} &= \begin{pmatrix} 0 \\ 5 \\ 0 \end{pmatrix} \times \begin{pmatrix} 2{,}5 \\ 2{,}5 \\ 6 \end{pmatrix} \\[0.8em] &= \begin{pmatrix} 5 & \cdot & 6 & - & 0 & \cdot & 2{,}5 \\ 0 & \cdot & 2{,}5 & - & 0 & \cdot & 6 \\ 0 & \cdot & 2{,}5 & - & 5 & \cdot & 2{,}5 \end{pmatrix} \\[0.8em] &= \begin{pmatrix} 30 \\ 0 \\ -12{,}5 \end{pmatrix} \\[0.8em] &= 2{,}5 \cdot \begin{pmatrix} 12 \\ 0 \\ -5 \end{pmatrix} \end{align*}\]



\[\Longrightarrow \quad \overrightarrow{n}_{F} = \begin{pmatrix} 12 \\ 0 \\ -5 \end{pmatrix}\]



Gleichung der Ebene \(F\) in Normalenform formulieren:



1. Möglichkeit: Ansatz mit der Normalenform in Vektordarstellung

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

Es sei \(A\) der Aufpunkt der Ebene \(F\).



\[\overrightarrow{n}_{F} = \begin{pmatrix} 12 \\ 0 \\ -5 \end{pmatrix}, \; A(0|0|0)\]



\[\begin{align*} &F \colon \overrightarrow{n}_{F} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0 \\[0.8em] &F \colon \begin{pmatrix} 12 \\ 0 \\ -5 \end{pmatrix} \circ \left[ \overrightarrow{X} - \begin{pmatrix} 0 \\ 0 \\ 0 \end{pmatrix} \right] = 0 \\[0.8em] &F \colon \begin{pmatrix} 12 \\ 0 \\ -5 \end{pmatrix} \circ \overrightarrow{X} = 0 \end{align*}\]



Ggf. wandelt man die Ebenengleichung in Normalenform in Vektordarstellung in die Koordinatendarstellung um. Hierfür wird das Skalarprodukt ausmultipliziert.

Skalarprodukt

Skalarprodukt

Unter dem Skalarprodukt \(\overrightarrow{a} \circ \overrightarrow{b}\) zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) versteht man das Produkt aus den Beträgen der beiden Vektoren und dem Kosinus des von den Vektoren eingeschlossenen Winkels \(\varphi\).

\[\overrightarrow{a} \circ \overrightarrow{b} = \vert \overrightarrow{a} \vert \cdot \vert \overrightarrow{b} \vert \cdot \cos{\varphi} \quad (0^{\circ} \leq \varphi \leq 180^{\circ})\]

Berechnung eines Skalarprodukts im \(\boldsymbol{\mathbb R^{3}}\) (vgl. Merkhilfe)

\[\overrightarrow{a} \circ \overrightarrow{b} = \begin{pmatrix} a_{1} \\ a_{2} \\ a_{3} \end{pmatrix} \circ \begin{pmatrix} b_{1} \\ b_{2} \\ b_{3} \end{pmatrix} = a_{1}b_{1} + a_{2}b_{2} + a_{3}b_{3}\]

\[\begin{align*} \begin{pmatrix} 12 \\ 0 \\ -5 \end{pmatrix} \circ \overrightarrow{X} = 0 \\[0.8em] 12 \cdot x_{1} + 0 \cdot x_{2} + (-5) \cdot x_{3} &= 0 \\[0.8em] 12x_{1} - 5x_{3} &= 0 \end{align*}\]



\[\Longrightarrow \quad F \colon 12x_{1} - 5x_{3} = 0\]



2. Möglichkeit: Ansatz mit der Normalenform in Koordinatendarstellung

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

Es sei \(A\) der Aufpunkt der Ebene \(F\).



\[\overrightarrow{n}_{F} = \begin{pmatrix} 12 \\ 0 \\ -5 \end{pmatrix}, \; A(0|0|0)\]



\[F \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

\[F \colon 12x_{1} - 5x_{3} + n_{0} = 0\]



\[\begin{align*} A \in F \colon 12 \cdot 0 - 5 \cdot 0 + n_{0} &= 0 \\[0.8em] n_{0} &= 0 \end{align*}\]



\[\Longrightarrow \quad F \colon 12x_{1} - 5x_{3} = 0\]
