Die Abbildung zeigt einen Würfel der Kantenlänge 6. Die Koordinaten der Eckpunkte \(A\,(0|0|0)\), \(D\,(0|6|0)\) und \(G\,(6|6|6)\) sind gegeben.

Abbildung zur Aufgabengruppe Geometrie 2, Würfel der Kantenlänge 6

Die Punkte \(B\), \(E\) und \(G\) liegen in einer Ebene \(L\). Bestimmen Sie eine Gleichung von \(L\) in Normalenform. Zeichnen Sie die Figur, in der die Ebene \(L\) den Würfel schneidet, in die Abbildung ein.

(mögliches Ergebnis: \(L\,\colon\; x_1 - x_2 + x_3 = 6\))

(5 BE)

Lösung zu Teilaufgabe a



\[A\,(0|0|0), \enspace D\,(0|6|0), \enspace G\,(6|6|6)\]



Gleichung der Ebene \(L\) in Koordinatenform

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

Richtungsvektoren der Ebene \(L\) bestimmen:

Der Abbildung können die Koordinaten der Punkte \(B\) und \(E\) entnommen werden.

\[B\,(6|0|0)\,\enspace E\,(0|0|6)\]



\[\overrightarrow{GE} = \overrightarrow{E} - \overrightarrow{G} = \begin {pmatrix} 0 \\ 0 \\ 6 \end {pmatrix} - \begin {pmatrix} 6 \\ 6 \\ 6 \end {pmatrix} = \begin {pmatrix} -6 \\ -6 \\ 0 \end {pmatrix}\]

\[\overrightarrow{GB} = \overrightarrow{B} - \overrightarrow{G} = \begin {pmatrix} 6 \\ 0 \\ 0 \end {pmatrix} - \begin {pmatrix} 6 \\ 6 \\ 6 \end {pmatrix} = \begin {pmatrix} 0 \\ -6 \\ -6 \end {pmatrix}\]



Normalenvektor der Ebene \(L\) bestimmen:

Vektorprodukt

Vektorprodukt (Kreuzprodukt)

Das Vektorprodukt \(\overrightarrow{a} \times \overrightarrow{b}\) zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) erzeugt einen neuen Vektor \(\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b}\) mit den Eigenschaften:

\(\overrightarrow{c}\) ist sowohl zu \(\overrightarrow{a}\) als auch zu \(\overrightarrow{b}\) senkrecht.

\[\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b} \quad \Longrightarrow \quad \overrightarrow{c} \perp \overrightarrow{a}, \enspace \overrightarrow{c} \perp \overrightarrow{b}\]

Der Betrag des Vektorprodukts zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) ist gleich dem Produkt aus den Beträgen der Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) und dem Sinus des von ihnen eingeschlossenen Winkels \(\varphi\).

\[\vert \overrightarrow{a} \times \overrightarrow{b} \vert = \vert \overrightarrow{a} \vert \cdot \vert \overrightarrow{b} \vert \cdot \sin{\varphi} \quad (0^{\circ} \leq \varphi \leq 180^{\circ})\]

Die Vektoren \(\overrightarrow{a}\), \(\overrightarrow{b}\) und \(\overrightarrow{c}\) bilden in dieser Reihenfolge ein Rechtssystem. Rechtehandregel: Weist \(\overrightarrow{a}\) in Richtung des Daumens und \(\overrightarrow{b}\) in Richtung des Zeigefingers, dann weist \(\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b}\) in Richtung des Mittelfingers.

Berechnung eines Vektorprodukts im \(\boldsymbol{\mathbb R^{3}}\) (vgl. Merkhilfe)

\[\overrightarrow{a} \times \overrightarrow{b} = \begin {pmatrix} a_1 \\ a_2 \\ a_3 \end {pmatrix} \times \begin {pmatrix} b_1 \\ b_2 \\ b_3 \end {pmatrix} = \begin {pmatrix} a_2 \cdot b_3 - a_3 \cdot b_2 \\ a_3 \cdot b_1 - a_1 \cdot b_3 \\ a_1 \cdot b_2 - a_2 \cdot b_1 \end {pmatrix}\]

\[\begin{align*}\overrightarrow{GE} \times \overrightarrow{GB} &= \begin {pmatrix} -6 \\ -6 \\ 0 \end {pmatrix} \times \begin {pmatrix} 0 \\ -6 \\ -6 \end {pmatrix} \\[0.8em] &= \begin {pmatrix} (-6) & \cdot & (-6) & - & 0 & \cdot & (-6) \\ 0 & \cdot & 0 & - & (-6) & \cdot & (-6) \\ (-6) & \cdot & (-6) & - & (-6) & \cdot & 0 \end {pmatrix} \\[0.8em] &= \begin {pmatrix} 36 \\ -36 \\ 36 \end {pmatrix} \\[0.8em] &= 36 \cdot \begin {pmatrix} 1 \\ -1 \\ 1 \end {pmatrix} \end{align*}\]

\[\Longrightarrow \quad \overrightarrow {n}_{L} = \begin {pmatrix} 1 \\ -1 \\ 1 \end {pmatrix}\]



Ebenengleichung in Normalenform in Vektordarstellung aufstellen:



Es sei \(G\,(6|6|6)\) Aufpunkt der Ebene \(L\).

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

\[\begin {align*}L\, \colon & & \overrightarrow {n}_{L} \circ \left( \overrightarrow X - \overrightarrow {G} \right) &= 0 \\[0.8em] & & \begin {pmatrix} 1 \\ -1 \\ 1 \end {pmatrix} \circ \left[ \overrightarrow X - \begin {pmatrix} 6 \\ 6 \\ 6 \end {pmatrix} \right] &= 0 \end {align*}\]



Ebenengleichung in Normalenform in Koordinatendarstellung (Koordinatenform) bestimmen:

Skalarprodukt

Skalarprodukt

Unter dem Skalarprodukt \(\overrightarrow{a} \circ \overrightarrow{b}\) zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) versteht man das Produkt aus den Beträgen der beiden Vektoren und dem Kosinus des von den Vektoren eingeschlossenen Winkels \(\varphi\).

\[\overrightarrow{a} \circ \overrightarrow{b} = \vert \overrightarrow{a} \vert \cdot \vert \overrightarrow{b} \vert \cdot \cos{\varphi} \quad (0^{\circ} \leq \varphi \leq 180^{\circ})\]

Berechnung eines Skalarprodukts im \(\boldsymbol{\mathbb R^{3}}\) (vgl. Merkhilfe)

\[\overrightarrow{a} \circ \overrightarrow{b} = \begin{pmatrix} a_{1} \\ a_{2} \\ a_{3} \end{pmatrix} \circ \begin{pmatrix} b_{1} \\ b_{2} \\ b_{3} \end{pmatrix} = a_{1}b_{1} + a_{2}b_{2} + a_{3}b_{3}\]

\[ \begin {align*} \begin {pmatrix} 1 \\ -1 \\ 1 \end {pmatrix} \circ \left[ \overrightarrow X - \begin {pmatrix} 6 \\ 6 \\ 6 \end {pmatrix} \right] &= 0 \\[0.8em] 1 \cdot (x_1 - 6) + (-1) \cdot (x_2 - 6) + 1 \cdot (x_3 - 6) &= 0 \\[0.8em] x_1 - x_2 + x_3 - 6 &= 0 \end {align*} \]



\[L\, \colon \, x_1 - x_2 + x_3 = 6 \]



Es ist ebenso möglich, direkt mit der Normalenform in Koordinatendarstellung anzusetzen.

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

\[{n}_{L} = \begin {pmatrix} 1 \\ -1 \\ 1 \end {pmatrix}\]

\(G\,(6|6|6) \in L\) (Aufpunkt)



\[\begin{align*}L\,\colon & & n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} &= 0 & & (\text{mit}\; n_{0} = -n_{1}g_{1} - n_{2}g_{2} - n_{3}g_{3}) \\[0.8em] & & 1 \cdot x_{1} + (-1) \cdot x_{2} + 1 \cdot x_{3} + n_{0} &= 0 \\[0.8em] & & x_{1} - x_{2} +x_{3} + n_{0} &= 0 \end{align*}\]



\[\begin{align*} G \in L\,\colon\, 6 - 6 + 6 + n_{0} &= 0 \\[0.8em] 6 + n_{0} &= 0 & &| - 6 \\[0.8em] n_{0} &= -6 \end{align*}\]



\[L\, \colon \, x_1 - x_2 + x_3 = 6 \]

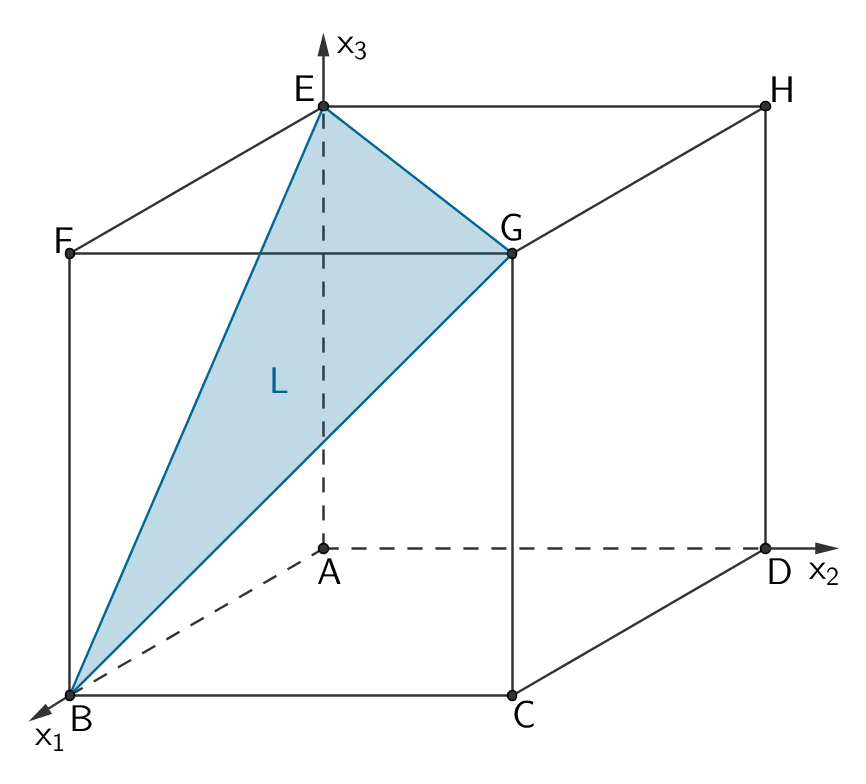

Zeichnung der Figur in der die Ebene \(L\) den Würfel schneidet



Figur (gleichseitiges Dreieck) in der die Ebene L den Würfel schneidet.

Figur (gleichseitiges Dreieck), in der die Ebne \(L\) den Würfel schneidet.
