In einem kartesischen Koordinatensystem legen die Punkte \(A(6|3|3)\), \(B(3|6|3)\) und \(C(3|3|6)\) das gleichseitige Dreieck \(ABC\) fest.

Ermitteln Sie eine Gleichung der Ebenen \(E\), in der das Dreieck \(ABC\) liegt, in Normalenform.

(mögliches Ergebnis: \(E \colon x_{1} + x_{2} + x_{3} - 12 = 0\))

(4 BE)

Lösung zu Teilaufgabe a



Ebenengleichung in Normalenform

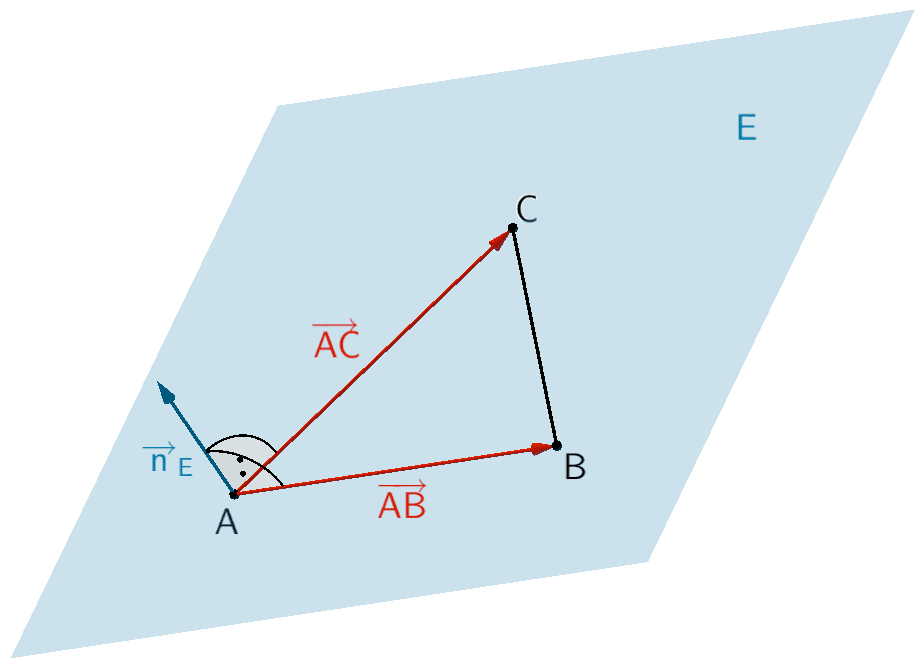

Dreieck ABC, Verbindungsvektoren der Punkte A und B bzw. A und C, Ebene E, Normalenvektor der Ebene E

Das Vektorprodukt (Kreuzprodukt) zweier linear unabhängiger Vektoren, beispielsweise der Verbindungsvektoren \(\overrightarrow{AB}\) und \(\overrightarrow{AC}\), liefert einen Normalenvektor \(\overrightarrow{n}_{E}\) der Ebene \(E\). Als Aufpunkt wählt man einen der gegebenen Punkte \(A\), \(B\) oder \(C\). Damit lässt sich eine Gleichung der Ebene in Normalenform angeben.

Der Ansatz kann mithilfe der Normalenform in Vektordarstellung oder in Koordinatendarstellung erfolgen. Die Aufgabenstellung nennt als mögliches Ergebnis eine Gleichung der Ebene \(E\) in Normalenform in Koordinatendarstellung.

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

Linear unabhängige Verbindungsvektoren \(\overrightarrow{AB}\) und \(\overrightarrow{AC}\) bestimmen:



\(A(6|3|3)\), \(B(3|6|3)\), \(C(3|3|6)\)



\[\overrightarrow{AB} = \overrightarrow{B} - \overrightarrow{A} = \begin{pmatrix} 3 \\ 6 \\ 3 \end{pmatrix} - \begin{pmatrix} 6 \\ 3 \\ 3 \end{pmatrix} = \begin{pmatrix} -3 \\ 3 \\ 0 \end{pmatrix}\]

\[\overrightarrow{AC} = \overrightarrow{C} - \overrightarrow{A} = \begin{pmatrix} 3 \\ 3 \\ 6 \end{pmatrix} - \begin{pmatrix} 6 \\ 3 \\ 3 \end{pmatrix} = \begin{pmatrix} -3 \\ 0 \\ 3 \end{pmatrix}\]



Normalenvektor \(\overrightarrow{n}_{E}\) der Ebene \(E\) ermitteln:

Vektorprodukt

Vektorprodukt (Kreuzprodukt)

Das Vektorprodukt \(\overrightarrow{a} \times \overrightarrow{b}\) zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) erzeugt einen neuen Vektor \(\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b}\) mit den Eigenschaften:

\(\overrightarrow{c}\) ist sowohl zu \(\overrightarrow{a}\) als auch zu \(\overrightarrow{b}\) senkrecht.

\[\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b} \quad \Longrightarrow \quad \overrightarrow{c} \perp \overrightarrow{a}, \enspace \overrightarrow{c} \perp \overrightarrow{b}\]

Der Betrag des Vektorprodukts zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) ist gleich dem Produkt aus den Beträgen der Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) und dem Sinus des von ihnen eingeschlossenen Winkels \(\varphi\).

\[\vert \overrightarrow{a} \times \overrightarrow{b} \vert = \vert \overrightarrow{a} \vert \cdot \vert \overrightarrow{b} \vert \cdot \sin{\varphi} \quad (0^{\circ} \leq \varphi \leq 180^{\circ})\]

Die Vektoren \(\overrightarrow{a}\), \(\overrightarrow{b}\) und \(\overrightarrow{c}\) bilden in dieser Reihenfolge ein Rechtssystem. Rechtehandregel: Weist \(\overrightarrow{a}\) in Richtung des Daumens und \(\overrightarrow{b}\) in Richtung des Zeigefingers, dann weist \(\overrightarrow{c} = \overrightarrow{a} \times \overrightarrow{b}\) in Richtung des Mittelfingers.

Berechnung eines Vektorprodukts im \(\boldsymbol{\mathbb R^{3}}\) (vgl. Merkhilfe)

\[\overrightarrow{a} \times \overrightarrow{b} = \begin {pmatrix} a_1 \\ a_2 \\ a_3 \end {pmatrix} \times \begin {pmatrix} b_1 \\ b_2 \\ b_3 \end {pmatrix} = \begin {pmatrix} a_2 \cdot b_3 - a_3 \cdot b_2 \\ a_3 \cdot b_1 - a_1 \cdot b_3 \\ a_1 \cdot b_2 - a_2 \cdot b_1 \end {pmatrix}\]

\[\begin{align*} \overrightarrow{AB} \times \overrightarrow{AC} &= \begin{pmatrix} -3 \\ 3 \\ 0 \end{pmatrix} \times \begin{pmatrix} -3 \\ 0 \\ 3 \end{pmatrix} \\[0.8em] &= \begin{pmatrix} 3 & \cdot & 3 & - & 0 & \cdot & 0 \\ 0 & \cdot & (-3) & - & (-3) & \cdot & 3 \\ (-3) & \cdot & 0 & - & 3 & \cdot & (-3) \end{pmatrix} \\[0.8em] &= \begin{pmatrix} 9 \\ 9 \\ 9 \end{pmatrix} \\[0.8em] &= 9 \cdot \begin{pmatrix} 1 \\ 1 \\ 1 \end{pmatrix} \end{align*}\]



\[\Longrightarrow \quad \overrightarrow{n}_{E} = \begin{pmatrix} 1 \\ 1 \\ 1 \end{pmatrix}\]



Gleichung der Ebene \(E\) in Normalenform formulieren:



1. Möglichkeit: Ansatz mit der Normalenform in Vektordarstellung

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

Es sei \(A\) der Aufpunkt der Ebene \(E\).



\(\overrightarrow{n}_{E} = \begin{pmatrix} 1 \\ 1 \\ 1 \end{pmatrix}\), \(A(6|3|3)\)



\[E \colon \overrightarrow{n}_{E} \circ \left( \overrightarrow{X} - \overrightarrow{A} \right) = 0\]

\[E \colon \begin{pmatrix} 1 \\ 1 \\ 1 \end{pmatrix} \circ \left[ \overrightarrow{X} - \begin{pmatrix} 6 \\ 3 \\ 3 \end{pmatrix} \right] = 0\]



Ggf. wandelt man die Ebenengleichung in Normalenform in Vektordarstellung in die Koordinatendarstellung um. Hierfür wird das Skalarprodukt ausmultipliziert.

Skalarprodukt

Skalarprodukt

Unter dem Skalarprodukt \(\overrightarrow{a} \circ \overrightarrow{b}\) zweier Vektoren \(\overrightarrow{a}\) und \(\overrightarrow{b}\) versteht man das Produkt aus den Beträgen der beiden Vektoren und dem Kosinus des von den Vektoren eingeschlossenen Winkels \(\varphi\).

\[\overrightarrow{a} \circ \overrightarrow{b} = \vert \overrightarrow{a} \vert \cdot \vert \overrightarrow{b} \vert \cdot \cos{\varphi} \quad (0^{\circ} \leq \varphi \leq 180^{\circ})\]

Berechnung eines Skalarprodukts im \(\boldsymbol{\mathbb R^{3}}\) (vgl. Merkhilfe)

\[\overrightarrow{a} \circ \overrightarrow{b} = \begin{pmatrix} a_{1} \\ a_{2} \\ a_{3} \end{pmatrix} \circ \begin{pmatrix} b_{1} \\ b_{2} \\ b_{3} \end{pmatrix} = a_{1}b_{1} + a_{2}b_{2} + a_{3}b_{3}\]

\[\begin{align*} \begin{pmatrix} 1 \\ 1 \\ 1 \end{pmatrix} \circ \left[ \overrightarrow{X} - \begin{pmatrix} 6 \\ 3 \\ 3 \end{pmatrix} \right] &= 0 \\[0.8em] 1 \cdot (x_{1} - 6) + 1 \cdot (x_{2} - 3) + 1 \cdot (x_{3} - 3) &= 0 \\[0.8em] x_{1} + x_{2} + x_{3} - 12 &= 0 \end{align*}\]



\[\Longrightarrow \quad E \colon x_{1} + x_{2} + x_{3} - 12 = 0\]



2. Möglichkeit: Ansatz mit der Normalenform in Koordinatendarstellung

Ebenengleichung in Normalenform

Ebenengleichung in Normalenform (vgl. Merkhilfe)

Jeden Ebene lässt sich durch eine Gleichung in Normalenform beschreiben. Ist \(A\) ein beliebiger Aufpunkt der Ebene \(E\) und \(\overrightarrow{n}_{E}\) ein Normalenvektor von \(E\), so erfüllt jeder Punkt \(X\) der Ebene \(E\) folgende Gleichungen:

Normalenform in Vektordarstellung

\[E \colon \overrightarrow{n}_{E} \circ (\overrightarrow{X} - \overrightarrow{A}) = 0\]

Veranschaulichung: Ebenengleichung in Normalenform in Vektordarstellung

Normalenform in Koordinatendarstellung

\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

mit \(n_{0} = -(\overrightarrow{n}_{E} \circ \overrightarrow{A}) = - \: n_{1}a_{1} - n_{2}a_{2} - n_{3}a_{3}\)

\(n_{1}\), \(n_{2}\) und \(n_{3}\): Koordinaten eines Normalenvektors \(\overrightarrow{n}_{E}\)

Es sei \(A\) der Aufpunkt der Ebene \(E\).



\(\overrightarrow{n}_{E} = \begin{pmatrix} 1 \\ 1 \\ 1 \end{pmatrix}\), \(A(6|3|3)\)



\[E \colon n_{1}x_{1} + n_{2}x_{2} + n_{3}x_{3} + n_{0} = 0\]

\[E \colon x_{1} + x_{2} + x_{3} + n_{0} = 0\]



\[\begin{align*}A \in E \colon 6 + 3 + 3 + n_{0} &= 0 \\[0.8em] 12 + n_{0} &= 0 & &| - 12 \\[0.8em] n_{0} &= -12 \end{align*}\]



\[\Longrightarrow \quad E \colon x_{1} + x_{2} + x_{3} - 12 = 0\]
